OB-00RMQ0-00
Specification
| LED | 5050 RGBW LED |
| LED Quantity | 30 LEDs/m |
| Lumen (MCD/LED) | W: 7-8 LM |
| R: 500-700 MCD | |
| G: 1500-2000 MCD | |
| B: 400-600 MCD | |
| Voltage | 12V DC / 24V DC |
| Power Consumption | 9.6W/m |
| Dimension | 5000x12x2.2 mm |
| Color | RGBW(CRI80, 6000K) |
| RGBW(CRI80, 4000K) | |
| RGBW(CRI80, 3000K) | |
| Driver Model | Constant Voltage |
| IP Rate | IP20 / IP65 / IP67 |
| Working Temperature | -25°C ~ +60°C |
| Store Temperature | -25°C ~ +70°C |

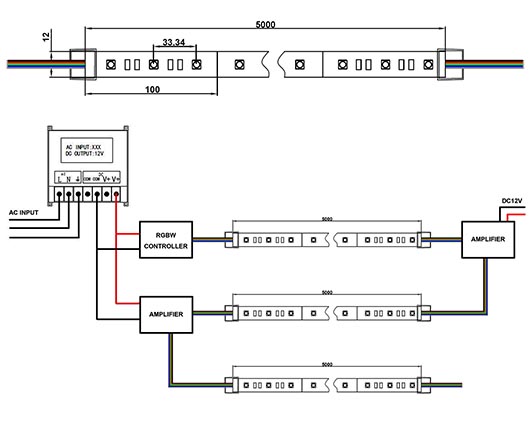

Dimension
Features
| 1. SMD5050, RGBW Color, high lumen LED | |
| 2. Flexible PCB, good heat radiation, 3 LEDs cuttable / 5 LEDs cuttable | |
| 3. DC12V/DC24V Low Voltage, stable and safe | |
| 4. 3M adhesive tape on the back of PCB, easy installation. |
